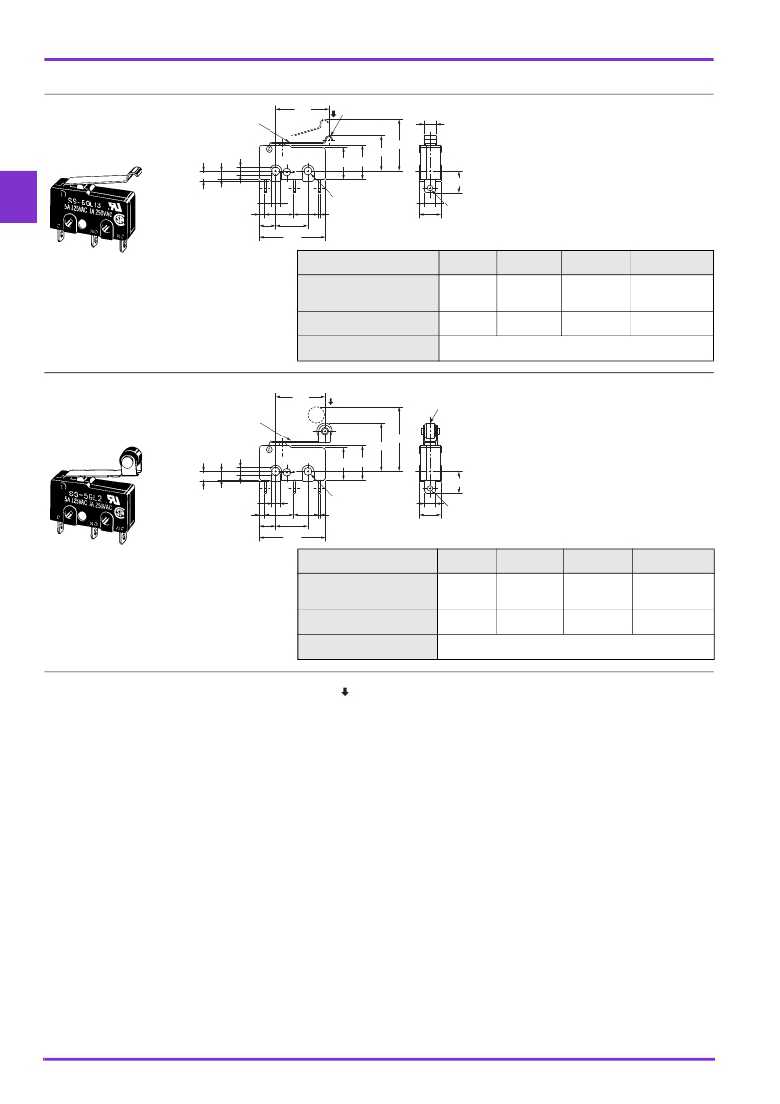

Subminiature Basic Switch
● Simulated roller lever
SS-10GL13
t=0.3*
15.8
A
R1.3
3.6
SS-5GL13 (-F)
2.35 + -0.05
SS-01GL13 (-E, -F)
0.075
9.5 10.2
OP
FP
2.9
2.5
6.4
2.35 + -0.05 dia. holes
S
S
2.5 ± 0.07 dia.
1.6
5.1
8.8
9.5 ± 0.1
19.8
7.3
0.5
0.075
3.2
6.4
3-1.6 dia. holes
Note. The indicated reference values of RF are for cases
where the lever weight is not applied to the plunger.
* Stainless-steel lever
Operating Characteristics
Model
SS-10GL13
SS-5GL13
SS-01GL13
SS-5GL13-F
SS-01GL13-F
SS-01GL13-E
Operating Force
Releasing Force
OF
RF
Max.
Min.
0.49 N {50 gf}
0.06 N {6 gf}
0.49 N {50 gf}
0.06 N {6 gf}
0.16 N {16 gf}
0.02 N {2 gf}
0.08 N {8 gf}
0.01 N {1 gf}
(reference value)
Overtravel OT
Movement Differential MD
Free Position
FP
Min.
Max.
Max.
1.0 mm
1.0 mm
1.2 mm
0.8 mm
1.2 mm
0.8 mm
15.5 mm
1.2 mm
0.8 mm
Operating Position
OP
10.7 ± 0.8 mm
● Hinge roller lever
SS-10GL2
SS-5GL2 (-F)
t=0.3 * 1
14.5
A
*2
4.8x3.2 dia.
SS-01GL2 (-E, -F)
FP
2.35 + -0.05
2.9
2.5
0.075
9.5 10.2
OP
6.4
2.35 + -0.05
2.5 ±0.07 dia.
1.6
5.1
8.8
9.5 ± 0.1
19.8
7.3
0.5
0.075
dia. holes
3.2
6.4
3-1.6 dia. holes
Note. The indicated reference values of RF are for cases
where the lever weight is not applied to the plunger.
*1. Stainless-steel lever
*2. Polyacetal resin roller
Operating Characteristics
Model
SS-10GL2
SS-5GL2
SS-01GL2
SS-5GL2-F
SS-01GL2-F
SS-01GL2-E
Operating Force
Releasing Force
OF
RF
Max.
Min.
0.49 N {50 gf}
0.06 N {6 gf}
0.49 N {50 gf}
0.06 N {6 gf}
0.16 N {16 gf}
0.02 N {2 gf}
0.08 N {8 gf}
0.01 N {1 gf}
(reference value)
Overtravel OT
Movement Differential MD
Free Position
FP
Min.
Max.
Max.
1.0 mm
1.0 mm
1.2 mm
0.8 mm
1.2 mm
0.8 mm
19.3mm
1.2 mm
0.8 mm
Operating Position
Note 1. Unless otherwise specified, a tolerance of ±0.4 mm applies to all dimensions.
Note 2. The operating characteristics are for operation in the A direction ( ).
6
OP
14.5 ± 0.8mm
